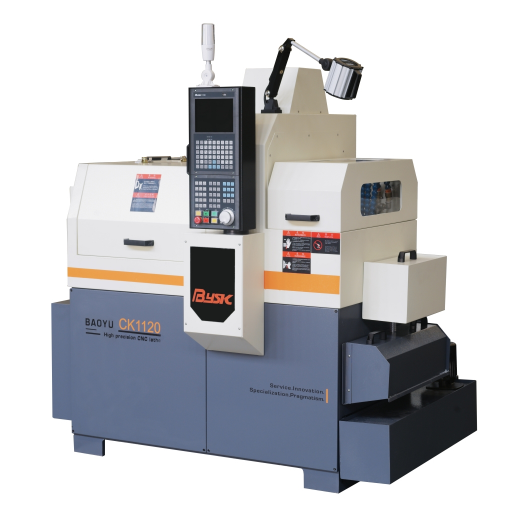

The CK1120 Swiss-style CNC lathe boasts three axes equipped with linear rolling guide rails, powered by absolute value servo motors. This design enables rapid tool changes, and the comprehensive CNC system ensures user-friendly operation. Customization options include side power heads for automated drilling and milling, tailored to specific workpiece processing needs.

●Extensive tooling options and swift tool changes.

●Capable of handling ultra-fine and elongated parts.

●Power head accommodates turning and milling composite processing (optional power head available).

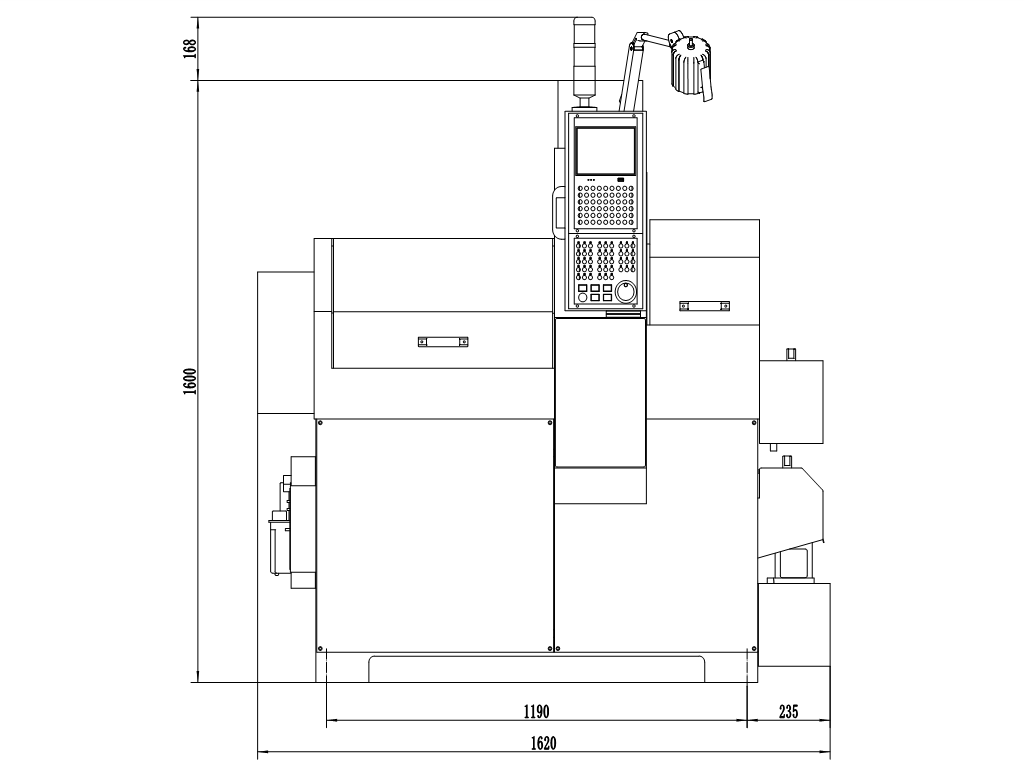

●Space-efficient layout with a compact design.

●One-piece cast base and bed undergo rigorous aging treatment, ensuring exceptional rigidity, superior damping performance, and durability for machine stability.

●Unique guideless design addresses the common issue of extended tailstock (120mm-180mm) in Swiss-style lathes, reducing material waste. Eliminating the need for a guide greatly improves workpiece outer diameter ovality caused by material bending, achieving roundness comparable to turret lathes while lowering material requirements.

●Fixed and active guides can also be utilized based on production needs.
